Diagram 1/044 Part 2.




As promised, I continued construction of the wagon tonight.
First task was to fit the buffers and to assist with accurate fitting of the replacements, I first bored down the existing shank, thereafter widening the hole to accommodate the broader mounting spigot of the new cast buffers.
Next task was to fit the drawhooks (Exactoscale) and the label boards on the ends.
I then tackled the underframe and brake gear, replacing the plastic shaft with brass wire and adding brass L section to replace the moulded tie bars as I mentioned yesterday.
The last stage of work involved attaching the door bumpers, brake levers and finally some cast vac bags on the ends. Again these, like the buffers are excellent castings by Dave Franks at Lanarkshire Model Supplies (www.lanarkshiremodels.com).

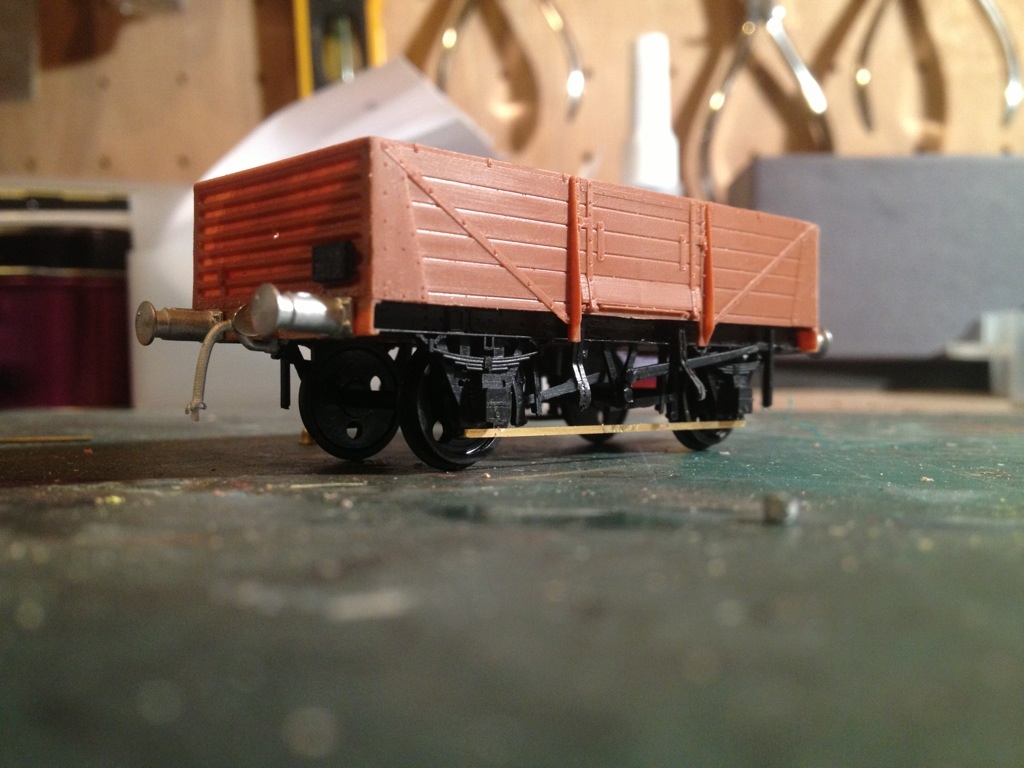

The model is now ready for painting. One notable aspect of this kit is the thin-ness of the sides and the good internal detail of the body mouldings.
Some imaginative paintwork will bring out the full potential of these details!
